BIOS fan speed measurement

Discussion in 'UDOO BOLT' started by NickGR, Apr 29, 2021.

  1. NickGR

    NickGR UDOOer

    Joined:
    Jun 23, 2020
    Messages:
    42
    Likes Received:
    12
    Hello, I checked my fan speeds in BIOS and at 35% it reports ~6000RPM, and when it hits 100% it reports ~3500RPM, is this some sort of error or cabling problem, did anyone else notice this?

  2. ccs_hello

    ccs_hello UDOOer

    Joined:
    Apr 15, 2017
    Messages:
    516
    Likes Received:
    188

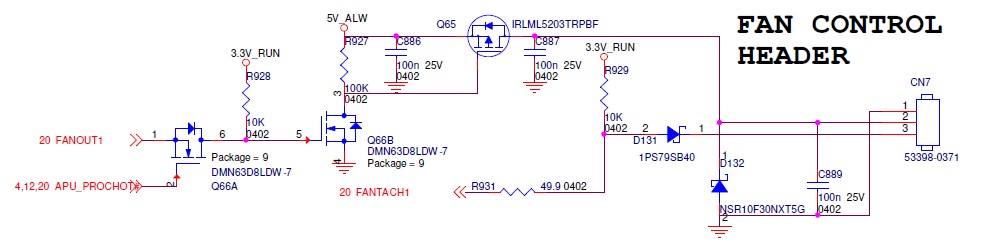

    Bolt's CPU fan is a 3-pin type PWM fan which has no tachometer feedback input mechanism.
    Thus whatever the fan speed's readback is not real.

  3. NickGR

    NickGR UDOOer

    Joined:
    Jun 23, 2020
    Messages:
    42
    Likes Received:
    12
    The Bolt is not using the signal/tachometer pin at all? Though the "Fan Settings" page mentions about it using the tachometer signal, even the BIOS has the option "Enhanced 3 wire RPM measurement", but if you confirm this is the case then everything is normal. Thank you.

  4. ccs_hello

    ccs_hello UDOOer

    Joined:
    Apr 15, 2017
    Messages:
    516
    Likes Received:
    188
  5. NickGR

    NickGR UDOOer

    Joined:
    Jun 23, 2020
    Messages:
    42
    Likes Received:
    12
    It is the default fan, just wondering other peoples readings on this matter before I try to tinker further with it.

  6. NickGR

    NickGR UDOOer

    Joined:
    Jun 23, 2020
    Messages:
    42
    Likes Received:
    12
    It seems for the three wire fans, when you PWM, the tachometer gets garbled signals, which is why the "Enhanced 3 wire RPM measurement" exists in the BIOS. Thankfully the Udoo staff helped me understand this and I learned something new.
