Hardware reference

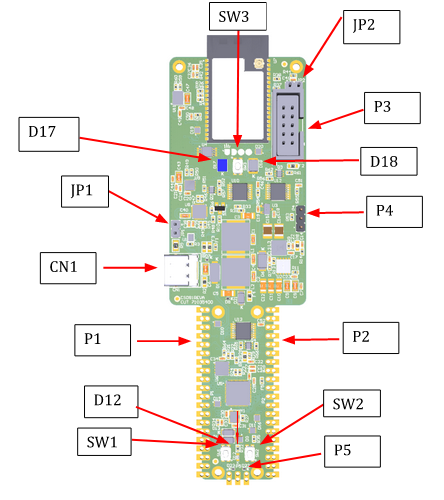

UDOO KEY on-board components

In the above image is represented the name of on-board components used in following sections and in the schematic file.
Following the role of each component.

Name Description
CN1 USB type-C connector
P1, P2 RP2040 external connectors
P3 UEXT connector to ESP32
P4 I²C select jumper
P5 External SWD connector to RP2040
JP1 USB select jumper
JP2 Boot mode selector ESP32
SW1, SW2, SW3 Switch buttons
D12, D17, D18 LEDs

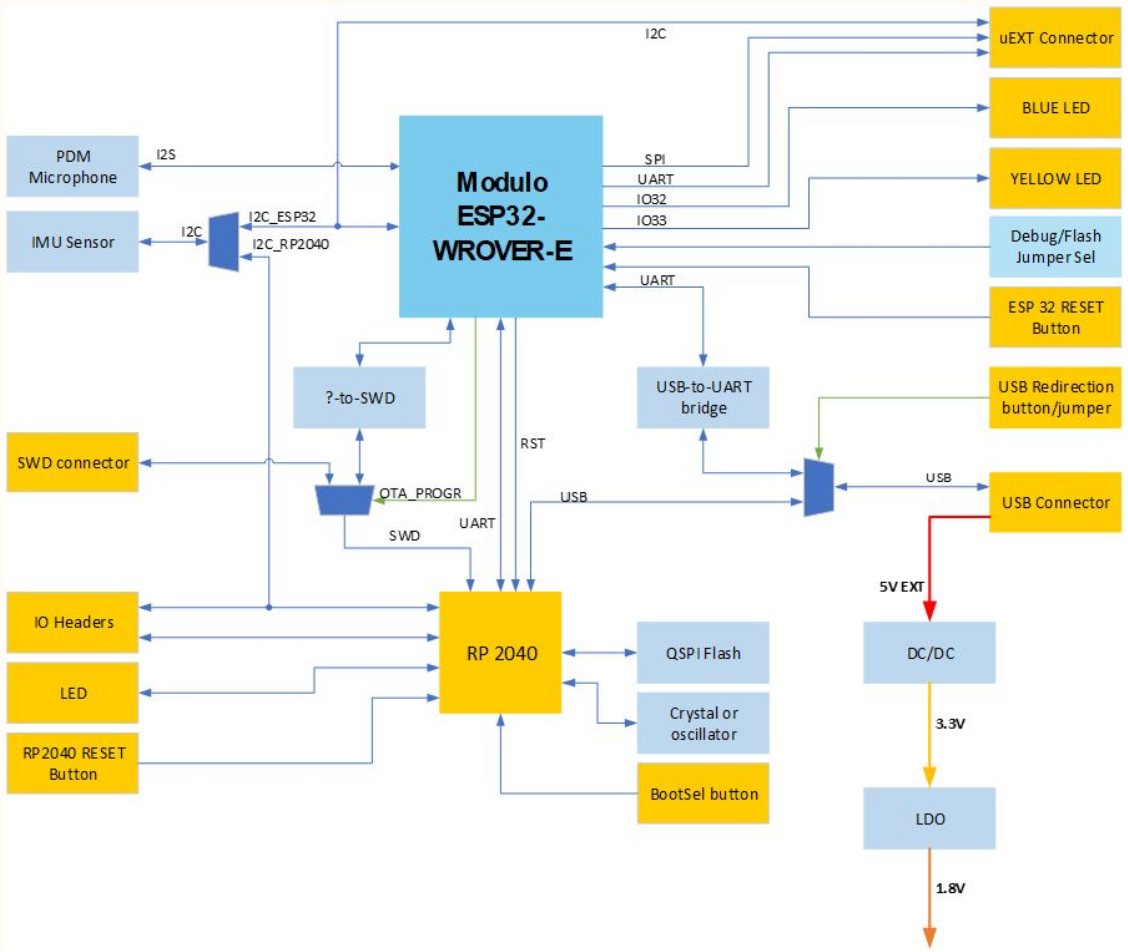

Block diagram

UDOO KEY block diagram
