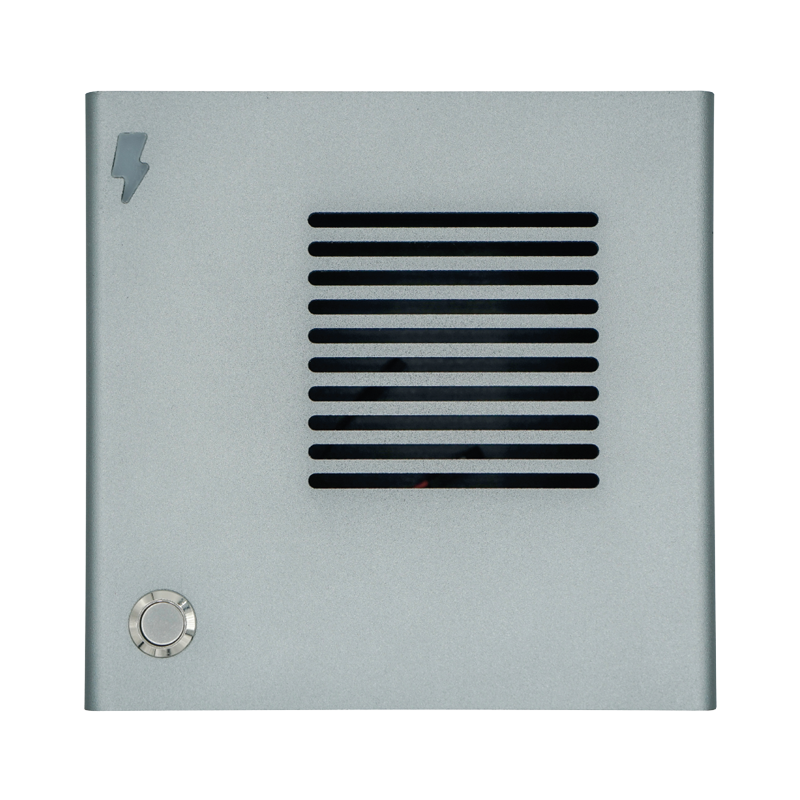

UDOO BOLT GEAR

UDOO BOLT GEAR is a portable, breakthrough supercomputer that goes up to 3.6 GHz thanks to the brand-new AMD Ryzen™ Embedded V1000 SoC, a top-notch APU, multicore CPU with powerful integrated mobile GPU - AMD Radeon™ Vega 8 - and an integrated Arduino® Leonardo-compatible platform, all wrapped into one.

On UDOO BOLT GEAR you can run all the software available for the PC world, from gaming to video streaming, from graphical editors to professional development platforms, plus all the software for the Arduino® Leonardo world, including all the sketches, libraries and the official Arduino® IDE.

UDOO BOLT GEAR embeds two processors:

  • the new AMD Ryzen™ Embedded V1000, V1605B, 14nm, 4-cores/8-threads CPU, with a thermal design power of just 12-25W, designed for really fast Ultrathin Notebooks. This processor family brings together the breakthrough performance of the pioneering AMD “Zen” CPU and AMD “Vega” GPU architectures in a seamlessly-integrated SoC solution that sets a new standard in processing power for next-generation embedded designs.
  • the Microchip ATmega32U4 8-bit AVR microcontroller, the same of Arduino® Leonardo.

While the AMD Ryzen™ Embedded V1000 processor can run all the Windows 10 and Linux 64-bit Distros you want to use as desktop PC, the Microchip ATmega32U4 allows easy access to a Arduino® Leonardo environment.
The main AMD Ryzen™ processor and the ATmega32u4 microcontroller are connected together through an internal USB serial connection, so it is exactly like you have an Arduino® Leonardo connected with a standard PC but all in small size form factor Single Board Computer.

Download the User Manual to have more complete explanation of the UDOO BOLT GEAR hardware and features.
Here you can find the Get Started and Safety instruction Manual for a quick installation.

If you find any problem in the proper working of UDOO BOLT GEAR you can check the Troubleshooting page.


Heads up! In order to prevent damages to your board, remember to:

  • CE and FCC certifications retained using only the UDOO BOLT GEAR qualified Power Supply. When not using UDOO BOLT GEAR qualified Power Supply, use 19VDC (min 60W power) PSUs certified for your country (make sure that the power cable is less than 3 mt. long).
  • CE and FCC certifications retained with the board inside the UDOO BOLT GEAR metal case.
  • This product should be operated in a well-ventilated environment and, if used inside a case, the case should not be covered.
  • This product should be elevated on a stable, flat, electrically non-conductive surface whilst in operation, and clear from any object that can induce a short-circuit.
  • Do not expose it to water, moisture or heat from any source; UDOO BOLT GEAR is designed for reliable operation at normal ambient room temperatures.
  • Avoid handling the warm and moving parts (like the fan) and generally the printed circuit board while it is powered.
  • Only handle by the edges to minimise the risk of electrostatic discharge damage.
  • Take care whilst handling to avoid mechanical or electrical damage to the printed circuit board and connectors. Also use a grounded wrist strap or touch a safely grounded object before you handle components.
  • Never provide more than 5V in input to the GPIOs of the Arduino Leonardo-compatible(Atmel® ATmega32U4), and never provide more than 3.3V in input to the GPIOs of the Embedded Controller.
  • Do not use a NON-standard USB 3.0 peripheral. If you use a non-standard USB 3.0 peripheral with an external power plug, this could send back the power source to the UDOO BOLT GEAR board with the risk of damage.
  • The most important safety rule of all: Always Be Careful! (ABC)

Technical specifications

UDOO_BOLT_top
  • Processor:
    • CPU AMD Ryzen™ Embedded V1605B SoC up to 3.6 GHz
  • GPU:
    • AMD Radeon™ Vega 8 Graphics - 8 GPU Compute Units
  • RAM:
    • 2x SO-DIMM Dual-channel 64-bit DDR4 2400 MT/s with ECC support up to 32GB
  • Microchip ATmega32U4 8-bit AVR RISC-based microcontroller.
  • Video interfaces:
    • 2x HDMI 1.4/2.0a
    • 2x USB Type-C (DP alternate mode)
  • Storage:
    • 1x M.2 Socket 2 Key B 2242/2260 for SSD SATA modules (featured also PCI-e x2)
    • 1x M.2 Socket 3 Key M 2280 for NVMe modules (PCI-e x4 Gen 3 interface)
    • 1x SATA III 6Gbit/s standard connector
  • Networking:
    • 1x Gigabit Ethernet LAN interface
    • 1x M.2 Key E slot for optional Wireless (WiFi+BT) Combo module
  • Audio interfaces:
    • HD Audio Codec Realtek ALC888S
    • Microphone + Headphone Combo Connector (TRRS)
    • Pre-amplified stereo Speaker Connectors (up to 3W)
    • Digital Optical audio S/PDIF and analog stereo output combo jack 3.5mm connector
  • 2x USB 3.0 type-A sockets
  • 2x USB Type-C :
    • USB 3.1
    • DisplayPort Alternate Mode
    • Dual Role Port (DRP) USB Power Delivery (USB-PD) 3.0
  • Embedded Controller I/O :
    • 2x UART ports*
    • 2x I2C interface*
    • 1x SPI interface*
    • 1x FAN Controller*
    • up to 10x GPIO*
  • Power In:
    • 19V DC Power Jack min 3.15A (60W) for basic functionalities - Male connector 4.5mm x 3.0mm with pin inside.
    • 2x USB Type-C power in. PD sink profile 20V/3A(60W).
  • RTC Battery Connector + RTC Coin Battery
  • Bi-color Power Status LED
  • Arduino™ Leonardo-Compatible I/O :
    • 12x analog inputs*
    • up to 23x digital input/output (7 PWM)*
    • 1x UART 1x I2C 1x SPI*
    • 3x Grove connectors:
      • 1x ANALOG INPUT, 1x UART or DIGITAL I/O, 1x I2C or DIGITAL I/O
  • Dimensions: 12cm x 12cm - 4.72” x 4.72”

*Available on Pin Headers
