UDOO versions UDOO versions

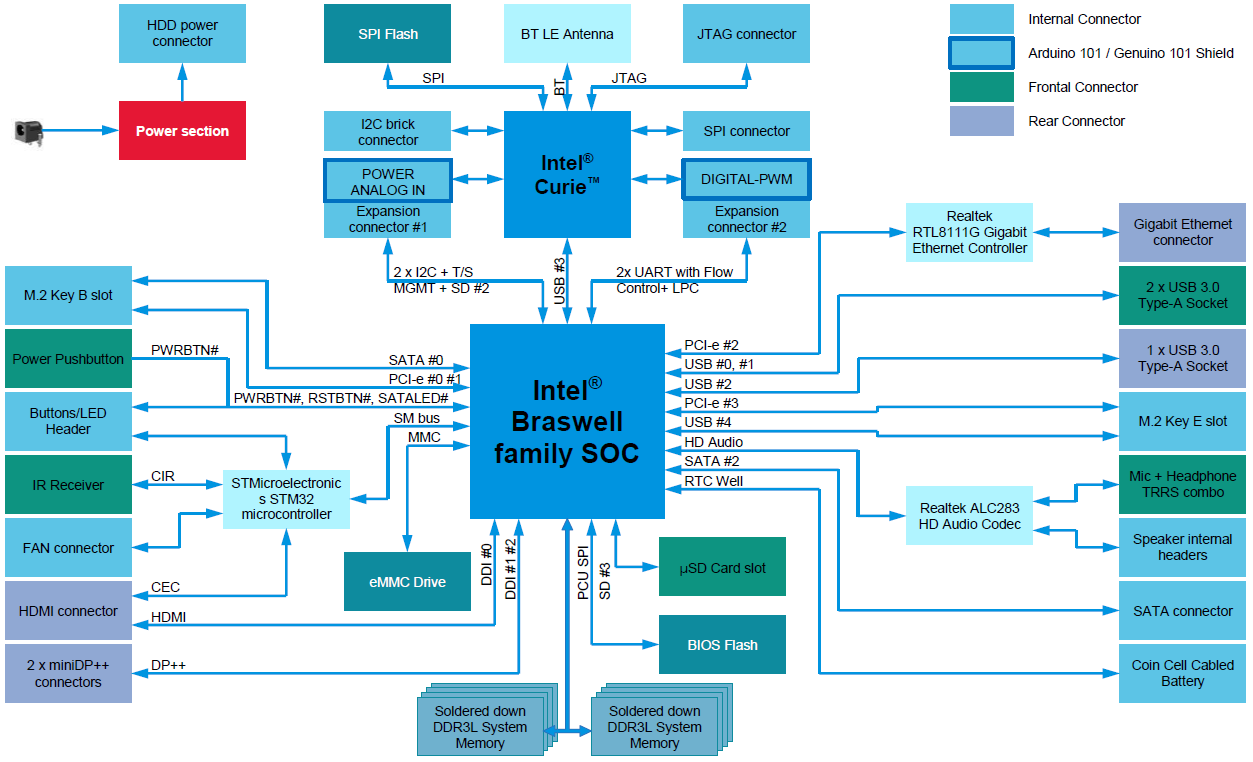

BLOCK DIAGRAM



FULL SPECS INTEL BRASWELL SOC

Processor Intel® Braswell 64 bit 14 nm: Quad Core up to 2.56GHz
Core 4
Memory DDR3L soldered-down memory up to 8GB RAM dual channel
Graphics Intel HD Graphics Gen 8 LP Up to 700 MHz Up to 16 execution units
Video Interfaces 1x HDMI 2x miniDP++ connectors
Mass Storage eMMC disk up to 32 GB soldered on board Standard SATA connector M.2 Key B SSD slot Micro SD card slot
Networking Gigabit Ethernet connector M.2 Key E slot for optional Wireless modules
USB 3 x USB 3.0 type-A sockets
Multimedia HW Video decode: H.265/HEVC, H264, MPEG2, MVC, VC-1, WMV9, JPEG, VP8, VP9; HW Video encode: H.264, MVC, JPEG
Audio Microphone + Headphone combo connector Speaker internal header S/PDIF output
Serial Ports 2x UART ports
Other Interfaces IR interface (RC5 compatible) LPC - 2 x I2C - GPIOs -signals on expansion connector
Digital I/O Pins Up to 20 extended GPIOs, multiplexed with other interfaces
Operating System Windows 10, 8.1, 7 64bit Any Linux Distribution for X86 64bit platform Android X86
Board Dimensions 120mm x85mm (4.72" x 3.35")

INTEL CURIE MICROCONTROLLER

Processor Intel Quark SE core 32 MHz plus 32-bit ARC core 32 MHz
Networking Bluetooth Low Energy
Other Interfaces SPI Flash JTAG connector
Arduino Pinout Arduino 101-Compatible and compatible with most Arduino Shields.
Digital I/O Pins 14 (PWM)
Analog I/O Pins 6 (10 Bits of resolution)
Sensors 6-axis combo sensor with accelerometer and gyroscope

Heads up! The communications between the Braswell SOC and the CurieTM SOC come through a USB interface, exactly like Arduino 101 / Genuino 101 boards connect to external PCs.
