Pinout

In this section you can find the details of the UDOO BLU pinout.

UDOO BLU Pinout features:

• 8x Digital GPIOs
• 6x Analog Input pins
• Power Pins:
  • 3V pin
  • Vin Pin
  • 2x GNDs
  • Reset Pin
• Other Interfaces:
  • 1x I2C
  • 1x SPI
  • 1x UART Serial

Digital Pins

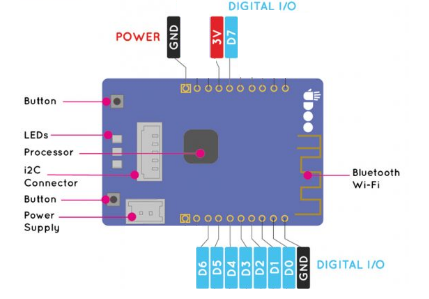

You can find the Digital Pins of the UDOO BLU in the image below

• D0, D1, D2, D3, D4, D5, D6, D7

All the digital pins can also be used as PWMs.

Analog Pins

You can find the Analog Pins of the UDOO BLU in the image below

• A0, A1, A2, A3, A4, A5
