The UDOO BLU power is managed by a low-dropout or LDO regulator.

You can provide power to the UDOO BLU in two ways:

Button-Cell CR2032

A Button-Cell CR2032 3v Li-Mn via the Battery Holder(BT2) in the bottom side of the board.

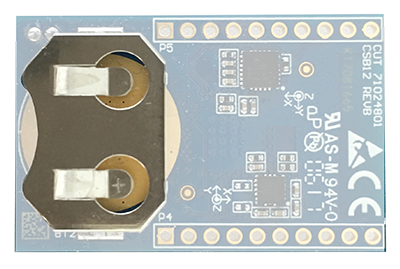

UDOO BLU battery holder

Heads up! The positive side (+) of the button cell need to be connected to the external side of the connector.

External Power Supply

An external power supply min 3V and up to 5.5V via the EXT Battery connector(BT1) in the top side of the board.

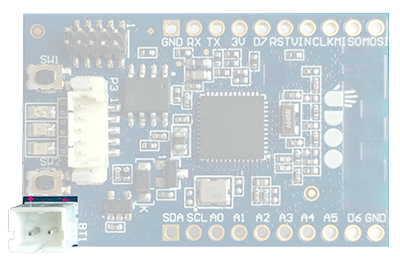

UDOO BLU external battery

Heads up! Pay attention to the right polarity of the battery you connect. The positive pole (+) is the one near the corner of the board.
