UDOO BRICKS

UDOO BRICKS are modules you can use to augment your UDOO BOARDS and make them more versatile. Attach them into I2C snap-in connector with the related cable. UDOO BRICKS work along a cascade configuration, so you can attach them all together without wasting space in a truly intuitive way. Thanks to such configuration you can use cables up to 3,5 m long to connect UDOO BRICKS one another. Below the available UDOO Bricks:

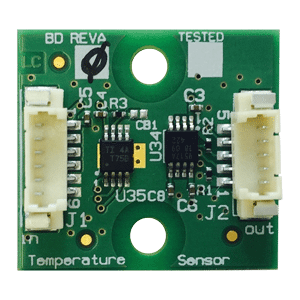

TEMPERATURE

The TEMPERATURE BRICKmeasures the temperature. It's based on TMP75b

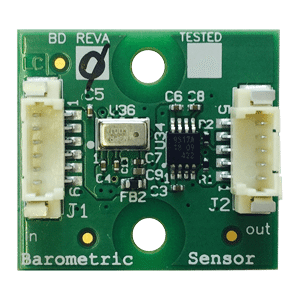

BAROMETER

The BAROMETER, ALTIMETER, TEMP BRICK measures the atmospheric pressure, the temperature and the altitude. It’s based on MPL3115.

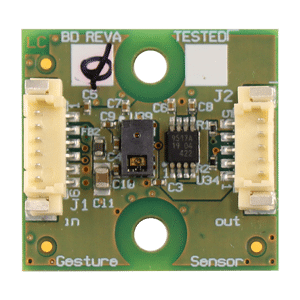

GESTURE

The GESTURE BRICK enables gesture recognition applications. It is based on the PAJ7620U2

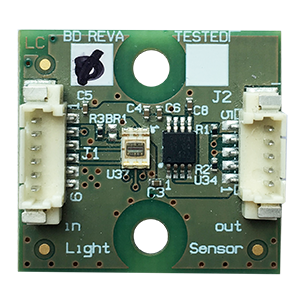

LIGHT

The LIGHT BRICK is a light sensor. It’s based on the TSL2561T.

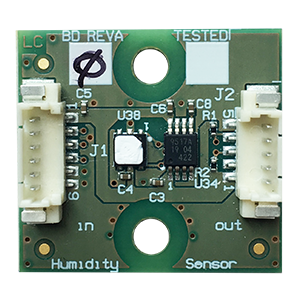

HUMIDITY

The HUMIDITY BRICK senses humidity. It is based on the SI7006-A20.

CUSTOM

Do you want us to produce a new Brick? Suggest yours.
