i.MX 6SoloX embeds on a single chip a single core ARM Cortex A9 and a ARM cortex M4 microcontroller.

For any deep inquiry regarding i.MX 6SoloX, please have a look at the dedicated reference manual made by Freescale.

They can use and share lot of hardware implemented features provided by the architecture as:

  • GPIOs
  • UARTs
  • I2Cs
  • SPIi
  • analogs ADCs

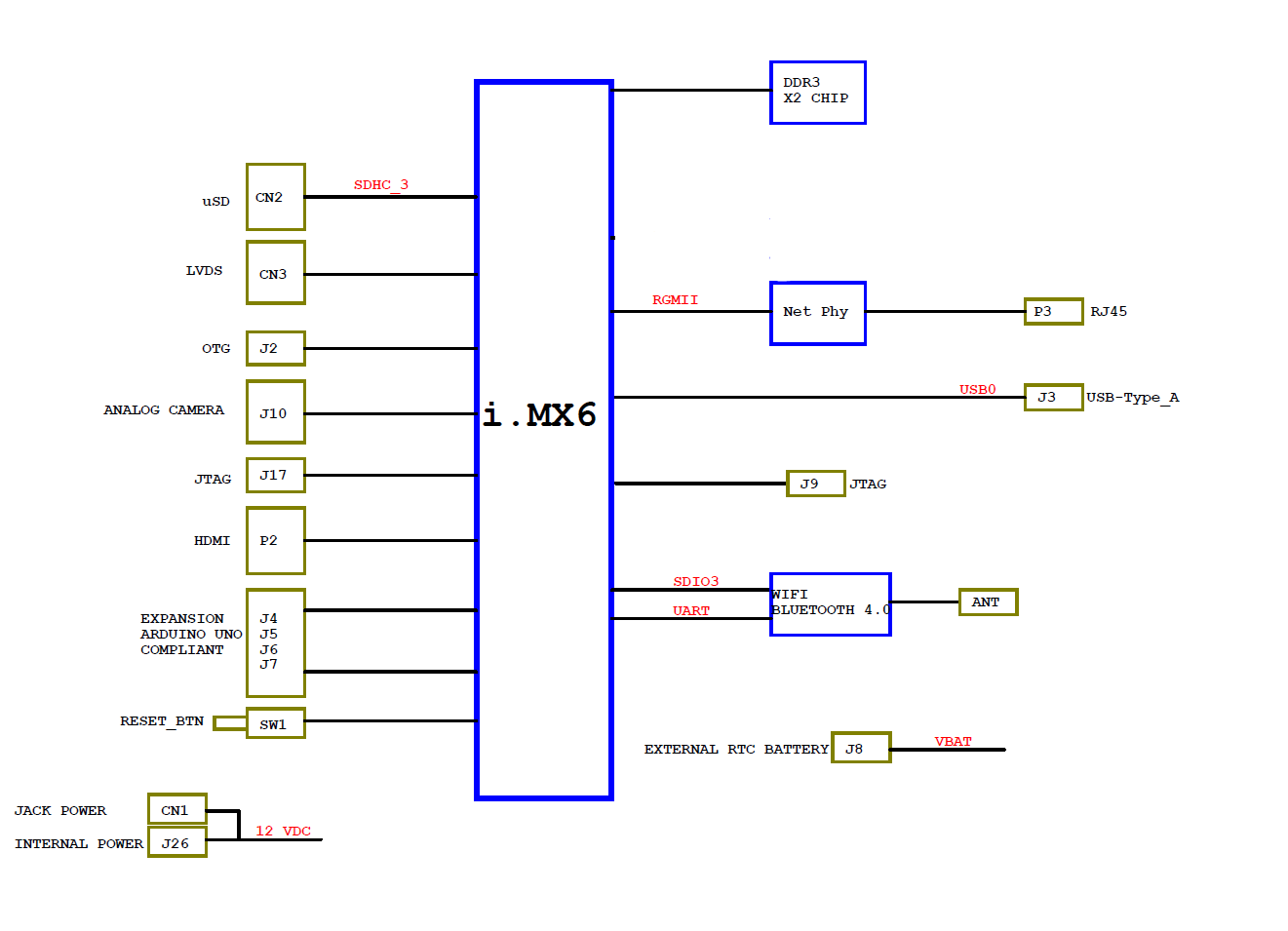

These two processors are connected to all interfaces and peripherals through an high speed AXI bus. It’s up to the programmer or the "system" admin to define witch features are assigned to each processors.

All the hardware features block can be accessed and connected via processors pad with a editable muxing. So the functions are not fixed but can accessed on different pads. Some of these pads are connected to external pins to allow the users to connect their stuff.

External pins (orange) are by default assigned to A9 in GPIO mode. So these pins can be controlled directly from the file system (Linux, Android). Internal pins (blue) are assigned and controlled by Cortex M4 with the same dimensions of Arduino UNO pinout. All the Arduino shields compatible can be plugged directly on UDOO Neo board.

Pinout Available features

I.MX 6SoloX provides the following functions, part of them are fully available on the pinout.

Hardware features

In the following tables are listed all the functional block with relative signals and pin numbers. In some cases the same signal are available in more then one pin.

UART serial ports

PORT Signal Name Internal Pin External Pin
UART1 UART1_TX_DATA 47
UART1_RX_DATA 46
UART2 UART2_TX_DATA 45
UART2_RX_DATA 44
UART3 UART3_TX_DATA RESERVED FOR BLUETOOTH CHIP
UART3_RX_DATA RESERVED FOR BLUETOOTH CHIP
UART5 UART5_TX_DATA 0
UART5_RX_DATA 1
UART6 UART6_RI_B 40
UART6_DSR_B 39
UART6_DTR_B 38
UART6_DCD_B 37
UART6_RX_DATA 36
UART6_TX_DATA 35
UART6_RTS_B 34
UART6_CTS_B 33

I2C

PORT Signal Name Internal Pin External Pin
I2C1 I2C1_SCL 26
I2C1_SDA 27
I2C2 I2C2_SCL 36 14 - SCL
I2C2_SDA 37 15 - SDA
I2C3 I2C3_SCL RESERVED FOR LCD / HDMI
I2C3_SDA RESERVED FOR LCD / HDMI
I2C4 I2C4_SCL 32 34
I2C4_SDA 33 35

CAN

PORT Signal Name Internal Pin External Pin
CAN1 CAN1_RX 40
CAN1_TX 41
CAN2 CAN2_RX 42
CAN2_TX 43

PWM - Pulse Width Modulation

PORT Signal Name Internal Pin External Pin
PWM1 PWM1_OUT 3
PWM2 PWM2_OUT 4
PWM3 PWM3_OUT 16 5
PWM4 PWM4_OUT 17 6
PWM5 PWM5_OUT 30 7
PWM6 PWM6_OUT 31 9
PWM7 PWM7_OUT 11
PWM8 PWM8_OUT 10

CSI - Camera

PORT Signal Name Internal Pin External Pin
CSI1 CSI1_VSYNC 24
CSI1_HSYNC 25
CSI1_DATA02 26
CSI1_DATA03 27
CSI1_DATA04 28
CSI1_DATA05 29
CSI1_DATA06 30
CSI1_DATA07 31
CSI1_DATA08 32
CSI1_DATA09 33

SPI

PORT Signal Name Internal Pin External Pin
ECSPI2 MISO 20
MOSI 21
SCLK 38
SS0 39
ECSPI3 MISO 18 A1
MOSI A0
READY
SCLK A4
SS0 A5 19
SS1 21
SS2 22
ECSPI5 MISO 40
MOSI 43
SCLK 42
SS0 41
