The iMX 6soloX processor implements a 4 channel Video ADC block. Two of these channels are exported on the external pinout in the J12 JST connector.

Exported channels are:

  • VADC_IN0
  • VADC_IN1

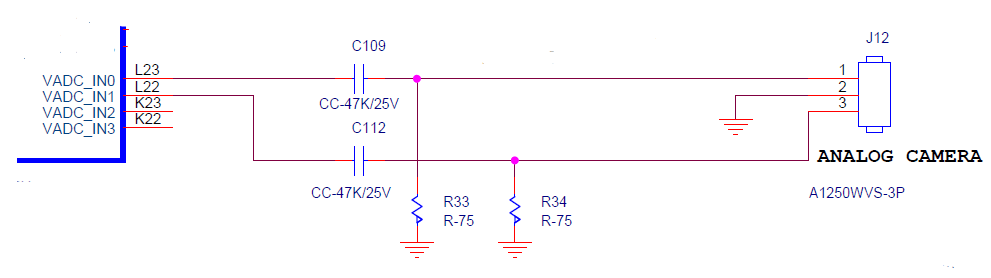

Schematics

J12 Connector

The two video signals are available on the J12 connector, including a ground reference:

Connector signals

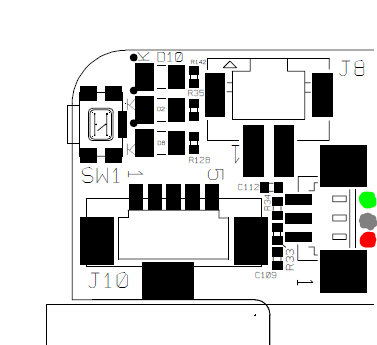

The signals related to the image below are:

  • RED: analog Video Input channel 0
  • GRAY: ground signals
  • GREEN: analog Video Input channel 1

How to create your connector

As soon as possible you'll be able to buy a specific cable on the shop.

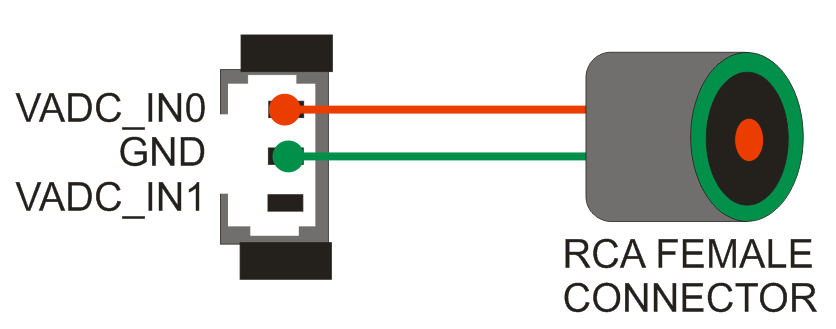

For the moment it is possible to create an RCA cable as in the following picture.

  • External: ground
  • Internal: signal
